F&F Insulated Tote Bag

July 2021 for Feast & Fettle

Fabrication
Research

I worked with local Providence company Feast & Fettle to design a carry bag for their food delivery service. The design brief required a short-distance carry bag that could keep the food inside cold and insulated, avoid messy spills or leaks, be easily handled by drivers, and would look identifiably in-brand.

Back to top

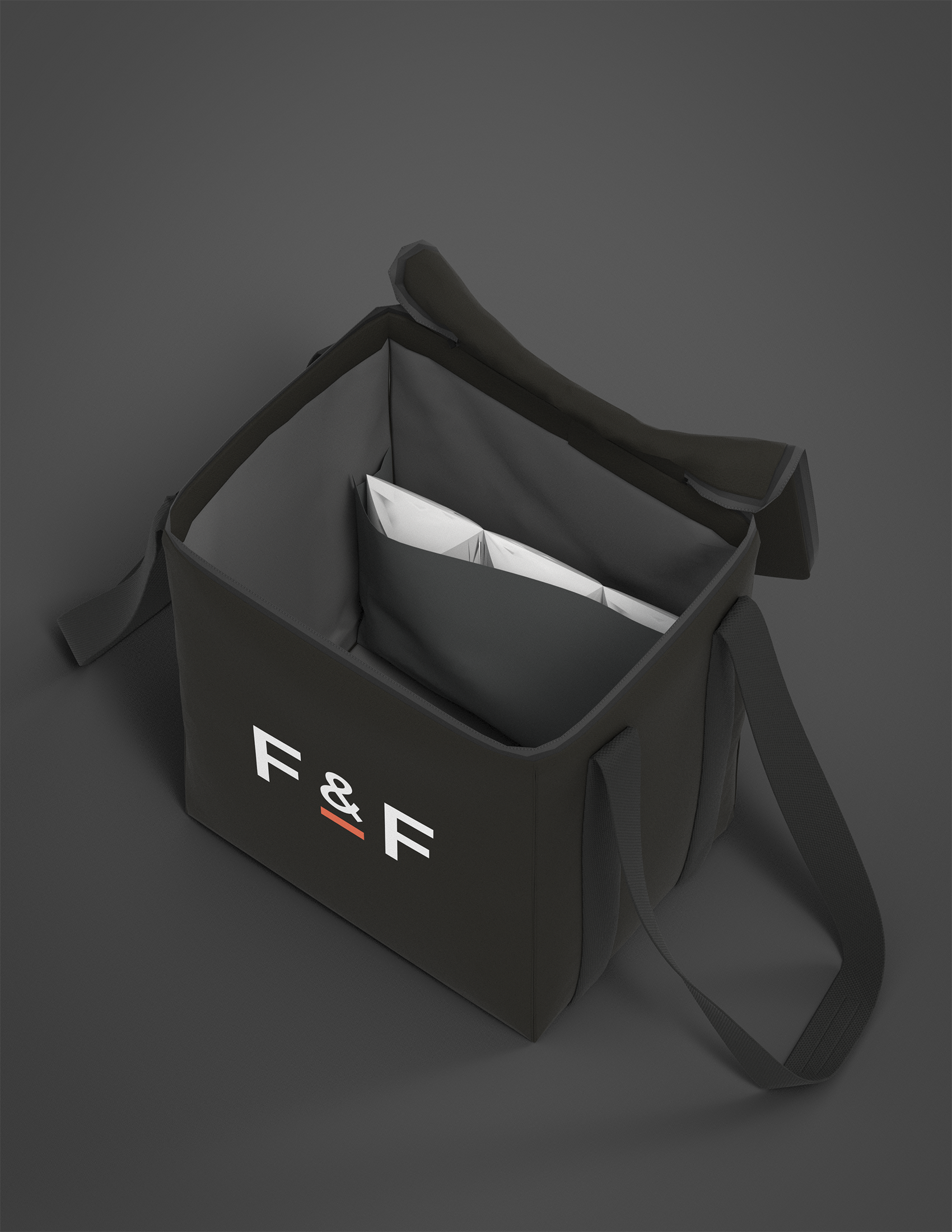

This is the final bag design. Due to COVID restrictions, this project as conducted fully remotely. It was my first time designing a soft goods project and doing so required many new skills.

I modeled the bag in a program called CLO3D, which is a digital soft goods and apparel modeler. Using the program allowed me to simulate the draping of fabrics in the real world and get a better idea how different materials would react to gravity and pressure. Learning CLO was a challenge at first, but definitely worth it for the sake of my design abilities.


The client asked me to develop a body of research in regards to the physical material of the bag, taking into account cost, aesthetic, and functionality. These slides contain details on the material research and measurement specs for the bag.

Bag Details

The client requested a dark color palette that matched their existing style guide, which consisted of the dark grey, orange, and white you see here. The orange highlights on the top of the handle straps contained low-strength magnets to hold the handles together on the go.

Each bag is paired with a delivery slip upon leaving the warehouse, so the bag needed to have an easy and obvious system for attaching the delivery slip.
I designed a hinging attachment with a magnetic strip for ease of use. The blue highlights in the above image show where the magnetic strips are placed.

The inside of the bag has a slip pocket to hold an ice pack. The ice pack inside the insulated bag keeps the food nice and cool until the customer picks it up.

Lastly, I added a rubber pull tab to the topzip of the bag to allow for easy and comfortable opening.

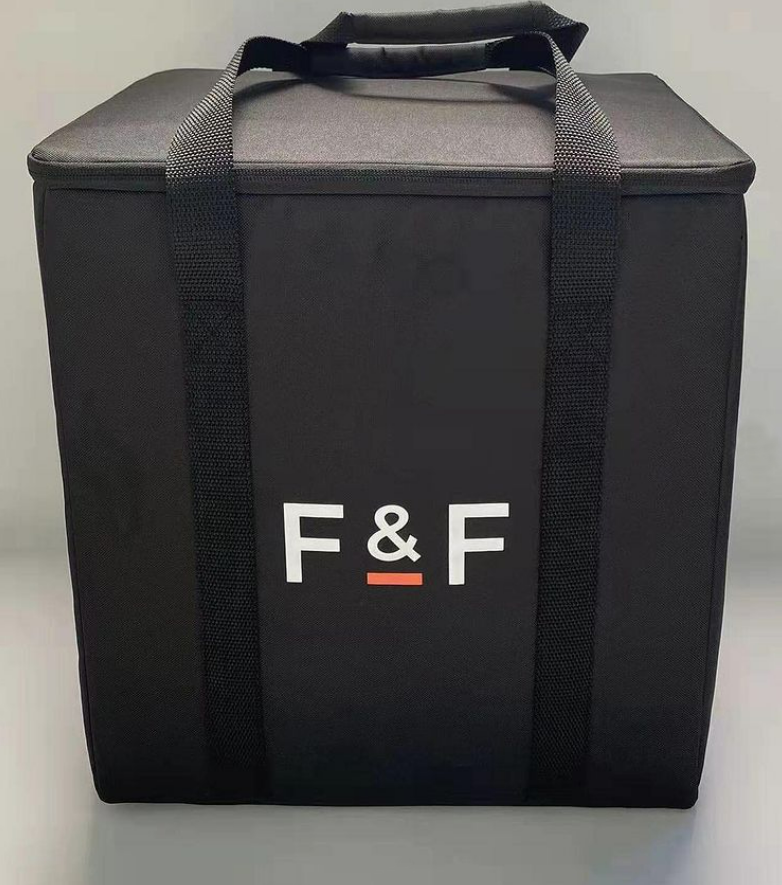

Here is an image of the real-world manufactured bag! Unfortunately, it isn't the highest quality image but it was exciting for me to see this fully digital process come to life.
